8’x16′ Trailer Base

Product Description

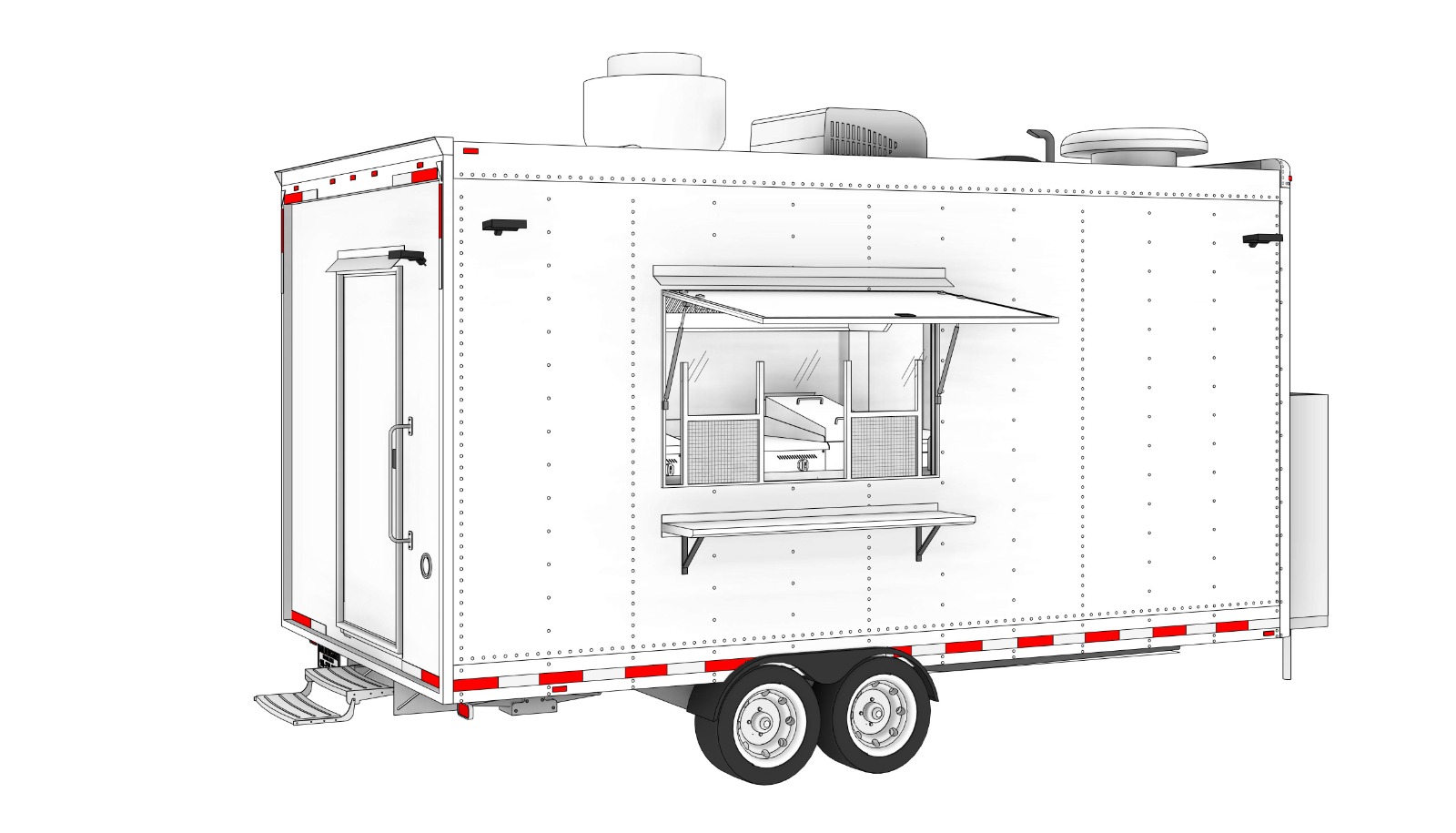

8’x16’ Enclosed Kitchen Trailer (20.5’ bumper to bumper)

VENTILATION

• 14’x14’ MAKE-UP AIR VENTILATION
• 15,000 BTU ROOF MOUNTED AIR CONDITIONER

PLUMBING

• NSF APPROVED 3 COMPARMENT SINK WITH 15”X15”X12” BOWL AND 2 DRAIN BOARDS
• NSF APPROVED 14” HAND WASHING SINK WITH 10”X12”X5” BOWL
• 37 GALLON FRESH WATER TANK
• 93 GALLON GREY WATER TANK
• NSF APPROVED, ON-DEMAND WATER PUMP
• 10 GALLON HOT WATER HEATER
• POTABLE WATER INLET WITH A BACK FLOW PREVENTION

GAS

• (2) LOCKABLE PROPANE TANK CAGES, ENCLOSED IN ALL ALUMINUM FRAME
• 400,000 BTU REGULATOR WITH AUTO CHANGEOVER
• 3/4” PROPANE SUPPLY LINE WITH GAS SHUT OFF VALVES
• (2) 100 LB PROPANE CYLINDERS

ELECTRICAL

• 125 AMP, 24 CIRCUIT BREAKER PANEL
• 50 AMP/240 V SERVICE LED
• T8 LIGHTS
• GFCI CONTROLLED OUTLETS
• ALL ELECTRICAL OUTLETS ARE ENCLOSED IN THE WALL TO KEEP YOUR WORK AREA SMOOTH AND CLEAN
• LED OUTDOOR LIGHTS

SAFETY

• ABC FIRE EXTINGUISHER FOR YOUR TRAILER
• SAFETY CHAINS
• ELECTRIC BRAKES ON ALL 4 WHEELS
• BREAKAWAY KIT (STOPPS THE TRAILER IN CASE OF A VEHICLE DISCONNECT)
• FIRST AID KIT

STORAGE

• NSF APPROVED, 18” STAINLESS STEEL STORAGE SHELVES
• LOCKABLE STAINLESS STEEL CABINETS
• STAINLESS STEEL WORK SURFACES

DOORS AND WINDOWS

• 36”X72” MAIN ENTRANCE DOOR
• WINDOW(S) WITH PLEXIGLASS AND SCREENS FOR ADDITIONAL VENTILATION AND EASIER COMMUNICATION

STRUCTURAL

• HARDWOOD FLOOR 1 1/8” WITH 12” CROSS MEMBERS CAPABLE OF WITHHOLDING 8200 LB PER 4”X4” CONCENTRATED LOAD
• 5200 LB DEXTER AXLES WITH ELECTRIC BRAKES
• SOLID ALUMINUM ROOF .030 WITH A SLIGHT BOW TO INCREASE DURABILITY AND TO AVOID COLLECTING WATER
• .040 ALUMINUM SKIN HELD VIA RIVETS, A BOND FOR LIFE
• R13 INSULATION
• 5/8 PLYWOOD BACKING

OTHER

• LED MARKER, BRAKE AND LICENSE PLATE LIGHTS
• STEP AND SAFETY HANDLE TO ENTER THE TRAILER
• ALUMINUM THREAD PLATE FLOORING
• STAINLESS STEEL WALLS
• FRP CEILING
