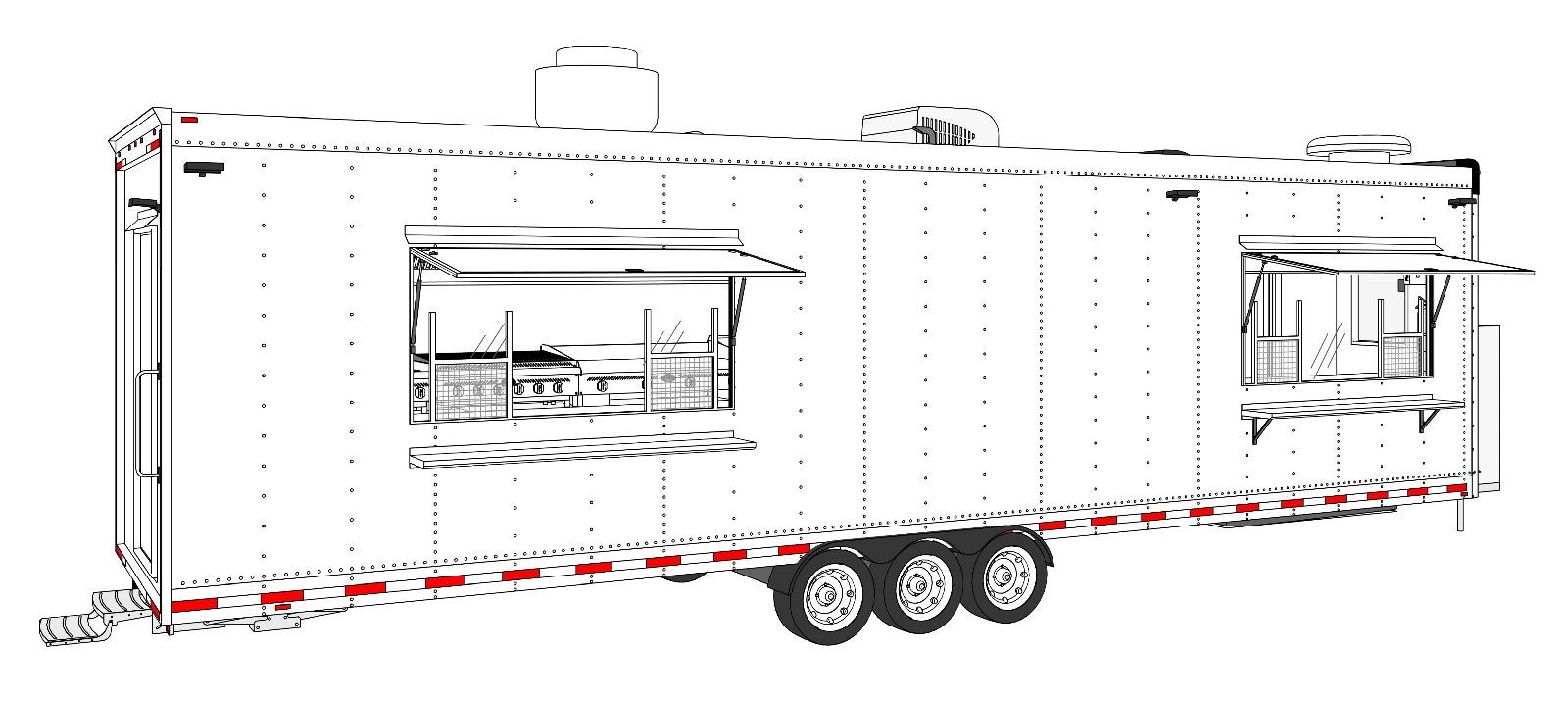

8’x30’ Trailer Base

VENTILATION
14’x14’ MAKE-UP AIR VENTILATION
15,000 BTU ROOF MOUNTED AIR CONDITIONER
PLUMBING

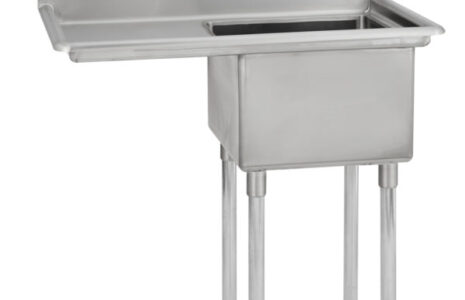

NSF APPROVED 3 COMPARMENT SINK WITH
15”X15”X12” BOWL AND 2 DRAIN BOARDS
NSF APPROVED 14” HAND WASHING SINK WITH
10”X12”X5” BOWL
37 GALLON FRESH WATER TANK
93 GALLON GREY WATER TANK
NSF APPROVED, ON-DEMAND WATER PUMP
10 GALLON HOT WATER HEATER
POTABLE WATER INLET WITH A BACK FLOW
PREVENTION
GAS
2 LOCKABLE PROPANE TANK CAGES, ENCLOSED IN
ALL ALUMINUM FRAME
400,000 BTU REGULATOR WITH AUTO CHANGEOVER
3/4” PROPANE SUPPLY LINE WITH GAS SHUT OFF
VALVES
2 100 LB PROPANE CYLINDERS
ELECTRICAL
125 AMP, 24 CIRCUIT BREAKER PANEL
50 AMP/240 V SERVICE
LED T8 LIGHTS
GFCI OUTLETS
ALL ELECTRICAL OUTLETS ARE ENCLOSED IN THE
WALL TO KEEP YOUR WORK AREA SMOOTH AND
CLEAN
LED OUTDOOR OUTLETS
SAFETY
ABC FIRE EXTINGUISHER FOR YOUR TRAILER
SAFETY CHAINS
ELECTRIC BRAKES ON ALL 4 WHEELS
BREAKAWAY KIT (STOPPS THE TRAILER IN CASE OF
A VEHICLE DISCONNECT)
FIRST AID KIT
STORAGE
NSF APPROVED, 18” STAINLESS STEEL STORAGE
SHELVES
LOCKABLE STAINLESS STEEL CABINETS
DOORS AND WINDOWS
36”X72” MAIN ENTRANCE DOOR
36”X72” WINDOW WITH PLEXIGLASS AND SCREENS
FOR ADDITIONAL VENTILATION AND EASIER
COMMUNICATION
STRUCTURAL
HARDWOOD FLOOR 1 1/8” WITH 12” CROSS
MEMBERS CAPABLE OF WITHHOLDING 8200 LB PER
4”X4” CONCENTRATED LOAD
7000 LB ROCKWELL AMERICAN AXLES WITH
ELECTRIC BRAKES
SOLID ALUMINUM ROOF .030 WITH A SLIGHT BOW TO
INCREASE DURABILITY AND TO AVOID COLLECTING
WATER
.040 ALUMINUM SKIN HELD VIA RIVETS, A BOND FOR
LIFE
R13 INSULATION
OTHER
LED MARKER, BRAKE AND LICENSE PLATE LIGHTS
STEP AND SAFETY HANDLE TO ENTER THE TRAILER
.125 ALUMINUM THREAD PLATE FLOORING
STAINLESS STEEL WALLS
FRP CEILING
