Product Description

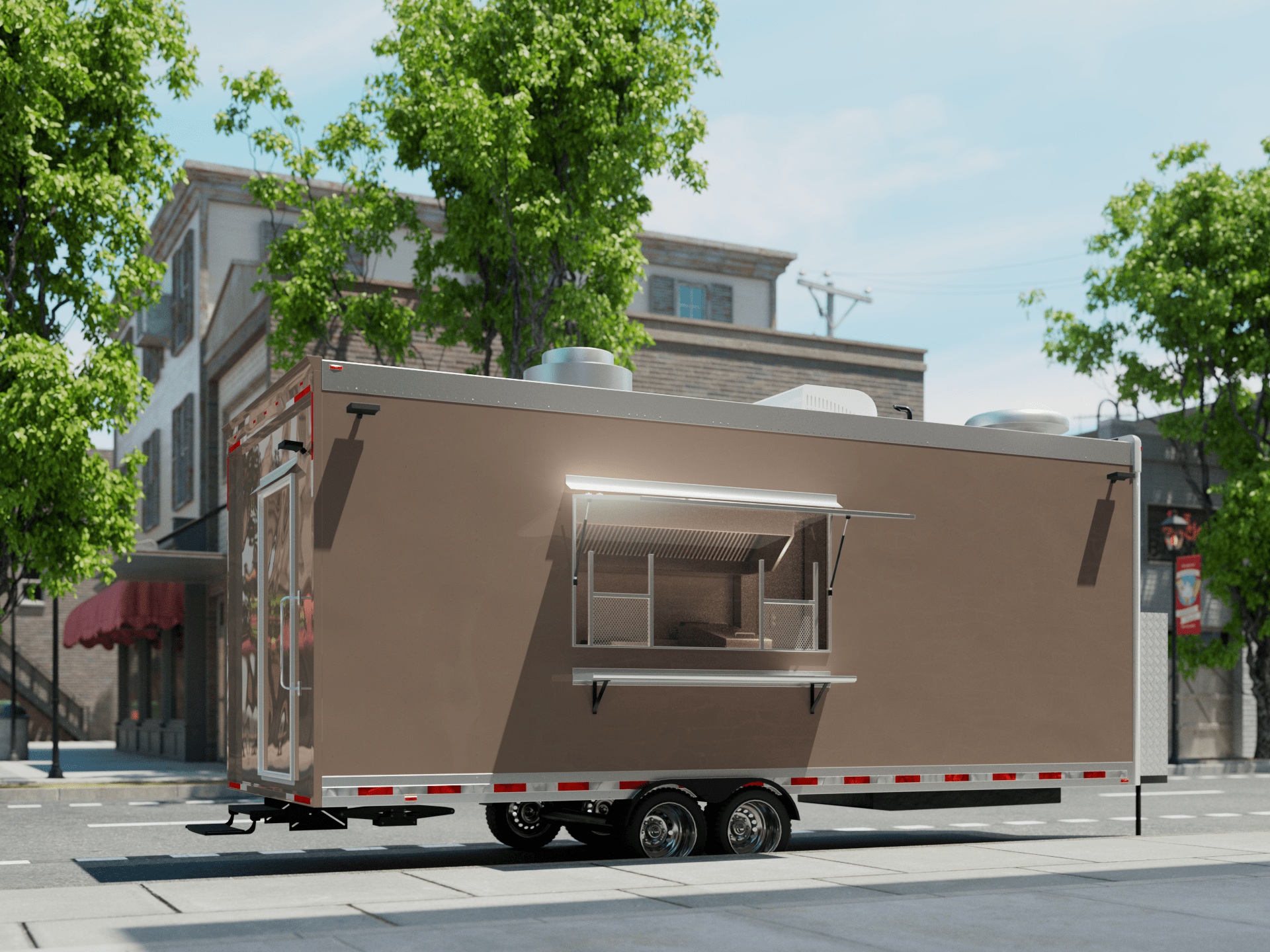

8’x20’ Enclosed Kitchen Trailer (24.5’ bumper to bumper)
VENTILATION
- 14’x14’ MAKE-UP AIR VENTILATION
- 15,000 BTU ROOF MOUNTED AIR CONDITIONER
PLUMBING
- NSF APPROVED 3 COMPARMENT SINK WITH 15”X15”X12” BOWL AND 2 DRAIN BOARDS
- NSF APPROVED 14” HAND WASHING SINK WITH 10”X12”X5” BOWL
- 37 GALLON FRESH WATER TANK
- 93 GALLON GREY WATER TANK
- NSF APPROVED, ON-DEMAND WATER PUMP
- 10 GALLON HOT WATER HEATER
- POTABLE WATER INLET WITH A BACK FLOW PREVENTION
GAS
- (2) LOCKABLE PROPANE TANK CAGES, ENCLOSED IN ALL ALUMINUM FRAME
- 400,000 BTU REGULATOR WITH AUTO CHANGEOVER
- 3/4” PROPANE SUPPLY LINE WITH GAS SHUT OFF VALVES
- (2) 100 LB PROPANE CYLINDERS
ELECTRICAL
- 125 AMP, 24 CIRCUIT BREAKER PANEL
- 50 AMP/240 V SERVICE LED
- T8 LIGHTS
- GFCI CONTROLLED OUTLETS
- ALL ELECTRICAL OUTLETS ARE ENCLOSED IN THE WALL TO KEEP YOUR WORK AREA SMOOTH AND CLEAN
- LED OUTDOOR LIGHTS
SAFETY
- ABC FIRE EXTINGUISHER FOR YOUR TRAILER
- SAFETY CHAINS
- ELECTRIC BRAKES ON ALL 4 WHEELS
- BREAKAWAY KIT (STOPPS THE TRAILER IN CASE OF A VEHICLE DISCONNECT)
- FIRST AID KIT
STORAGE
- NSF APPROVED, 18” STAINLESS STEEL STORAGE SHELVES
- LOCKABLE STAINLESS STEEL CABINETS
- STAINLESS STEEL WORK SURFACES
DOORS AND WINDOWS
- 36”X72” MAIN ENTRANCE DOOR
- WINDOW(S) WITH PLEXIGLASS AND SCREENS FOR ADDITIONAL VENTILATION AND EASIER COMMUNICATION
STRUCTURAL
- HARDWOOD FLOOR 1 1/8” WITH 12” CROSS MEMBERS CAPABLE OF WITHHOLDING 8200 LB PER 4”X4” CONCENTRATED LOAD
- 7000 LB DEXTER AXLES WITH ELECTRIC BRAKES
- SOLID ALUMINUM ROOF .030 WITH A SLIGHT BOW TO INCREASE DURABILITY AND TO AVOID COLLECTING WATER
- .040 ALUMINUM SKIN HELD VIA RIVETS, A BOND FOR LIFE
- R13 INSULATION
- 5/8 PLYWOOD BACKING
OTHER
- LED MARKER, BRAKE AND LICENSE PLATE LIGHTS
- STEP AND SAFETY HANDLE TO ENTER THE TRAILER
- ALUMINUM THREAD PLATE FLOORING
- STAINLESS STEEL WALLS
- FRP CEILING
